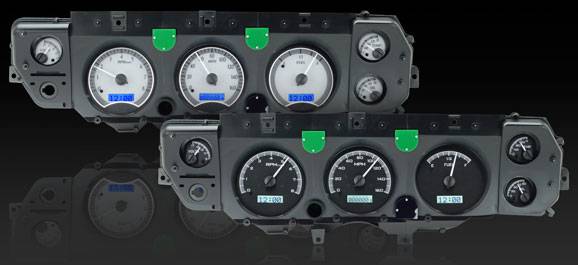

1970-1972 SS Chevelle Analog VHX
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Uses stock or aftermarket bezel
Speedometer ·0 -160 MPH (optional metric version 0- 255 km/h)
Tachometer ·0- 8,000 RPM
Oil Pressure ·0- 80 psi
Water Temperature ·100- 260ºF (optional metric version 40- 120ºC)
Fuel Level ·E, 1/4, 1/2, 3/4, F
Voltmeter ·9- 17 VDC
Lighting ·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.
Digital Message Centers
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)
·0- 60 MPH Timer (0- 100 kmh)
·1/4 mile time
·1/4 mile end speed (trap speed)
·High speed recall
·High RPM recall
·Speedometer (0- 255 MPH/kmh)
·Tachometer (0- 9,990 RPM)
·Oil Pressure (0-100 psi displayed in 1 psi increments)
·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
·Voltmeter (9- 17 VDC)
·Fuel Level (0-99% full)
·Auto-contrasting LCD display for optimal view in the brightest of sunlight.
·LED backlit at night to match/ complete the look at night.
·Turn Signals (Left/ Right)
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-2000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
